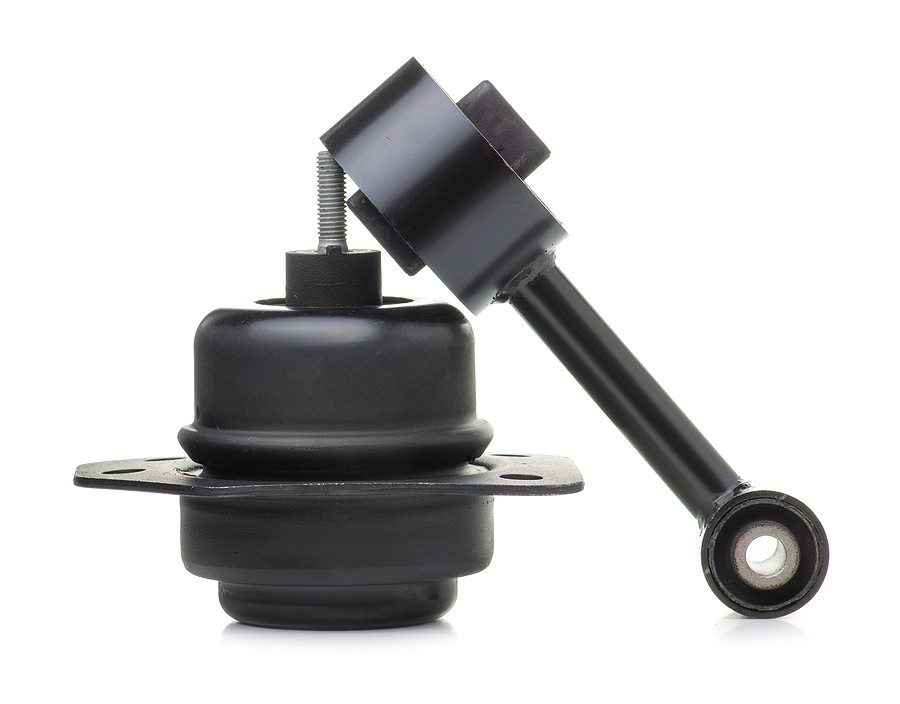

What Is A Motor Mount In A Car? How Many Motor Mounts Are In A Car?

What Is A Motor Mount In A Car? How Many Motor Mounts Are In A Car?

Whether you refer to them as motor mounts or engine mounts, they are vital components of a car that hold the engine in place. Located atop the chassis, your motor mounts use both rubber seals and metal connections to hold car components in place while minimizing the vibrations as the engine runs. It’s quite important to have healthy and working motor mounts, because the car’s engine generates a ton of torque and power.


As time progresses, the rubber pads/seals will often wear out or fracture, leading to huge risks for the driver. If the engine is not mounted and begins to move around- even just a bit- you are looking at such engine problems as chassis damage, frame damage and handling issues. The bottom line: it is very unsafe to drive with a fractured, worn out or damaged motor/engine mount.

How Many Motor Mounts are in a Car?

In most vehicles, a transmission and an engine are secured together by three or four mounts. The mount that holds the transmission is called the transmission mount while the other mounts are referred to motor or engine mounts.

How Are Motor Mounts Held Together? What Are Motor Mounts Made Of?

One part of the motor mount is fastened to the car fame or body. Another part holds the engine in place. An engine not only vibrates, but also has lots of rotating and moving parts. The task of an engine mount is to hold the engine in place AND reduce the engine vibration that can be felt in a vehicle.

Engine mounts are crafted from rubber material, ensuring that there is no conduit for electricity and no direct metal-to-metal contact between the car body and the engine.  To further muffle, dampen or eliminate vibration, many engine mounts are crafted with liquid located inside the mount. An engine mount filled with liquid will look similar to a shock absorber.



Some car makers utilize a mount that is an active vacuum-controlled engine mount. The muffling or vibrating-eliminating dynamic of the mount will vary.  Porsche vehicles-for example- offer an electromagnetic mount that works to lessen engine vibration transferred to the car body. An engine mount doesn't need any regular servicing or maintenance. Mounts only need to be replaced once they wear out or fall out.

How Long Do Engine Mounts Last?

In many vehicles, engine mounts can last the entire lifetime of the vehicle.  Most of the time, engine mounts /motor mounts will begin to show wear and tear, after about seven years. Generally, transmission mounts last longer than engine mounts.



What are some of the most common Engine Mount Problems?

One of the most common issues with engine mounts is when the rubber fractures or begins to break apart. For an engine mount filled with liquid, that liquid will begin to leak out.


Some common symptoms of a weakened engine mount include:

  1. A noticeable increase in engine noise
  2. Tremendous shaking or vibration felt in the car and more issues.

Many times, the excessive shaking is quite noticeable by a driver (and his or her passengers) during idling once the transmission is engaged. A car owner can succumb to a faulty passenger side mount and experience lots of shaking or vibrations and growling noises.

If you’re facing a fractured top engine mount, then you may be facing idling with shaking. This may be quite noticeable when the transmission is in “drive” mode. For some drivers, a fractured engine mount can also cause a noticeable thump or jolt, when shifting to reverse or drive mode.

Did you know that a failed front engine mount can cause rough transmission engagement once a driver shifts between reverse, park and drive? There can also be huge shaking during highway driving. In other vehicles a worn-out engine mount can cause shaking that is felt in the steering wheel during idling.  The shaking may disappear when the driver shifts to neutral mode.  Are you facing a bad transmission mount? Then you may be facing screeching or squeaking when shifting gears or starting the engine. Many drivers experience rattling noises with a bad engine mount.

How is a Failed Motor Mount Diagnosed?

As stated earlier, a bad motor mount will have visible signs of tears, cracks and separations in the rubber. The motor mounts that are filled with liquid, will be leaking. Motor mounts that are worn may also begin to sag. A mechanic will look to properly diagnose a bad motor mount exhausting all other possible problems. the same symptoms as a bad engine mount.

When a damaged or bent exhaust-pipe is able to touch one of the chassis components, there will be rattling noises and vibration- once the car is shifted into reverse or drive mode.  Generally, when one motor mount is bad, the engine may appear to be seated lower on the side of the faulty mount. One faulty engine mount will place strain on the working engine mounts. So, mechanics can see a pair of bad engine mounts at the same time.

What’s the General Cost of a Motor Mount Replacement?

As you can imagine, motor mount replacement costs can vary. A new motor mount part can range in cost between $80 and $400, depending on the complexity of the repair.  Labor charges will be the bulk of your repair and replacement, as it takes mechanics time and energy to reach the mount remove it and replace the motor mount.



Are you needing to replace your motor mount and want to use an aftermarket part? Make sure that you take the time to do your research to ensure a quality part. For example, we went online and found a motor mount for a Lincoln MKZ for $100. We also found a “five-piece” motor mount set for an Acura TL 3.2L 2004, 2005, 2006 with automatic transmission, for a little over $65.



What Happens If You Don't Fix Motor Mounts?

As time progresses, it is quite common for a motor mount to weaken. In severe cases, your motor mount can even snap. For unsecured motor mounts you will have issues, making your car very dangerous to drive.

Can Your Engine Fall Out Of Your Car?

Generally, a broken motor mount will not make the car engine fall out of the car, even though you may feel as if your engine has fallen out. It is just about impossible for a motor to completely fall out of a car because the motor is affixed to the transmission. So, you would have a transmission and a engine fall out- and that rarely happens.



Can You Replace Engine Mounts Yourself?

Motor mounts are crafted to secure your car engine and transmission to the subframe. Since motor mounts can go bad, it seems ideal to take your car to a mechanic. But you may opt for a DIY motor mount replacement in an effort to save some cash. So, if you do choose to replace your motor mounts yourself, be sure that you know what you’re doing and you ask for help should you need it. Prepare for stubborn bolts, and the possibility that you have to replace gaskets and hoses too. And don’t forget that you will need a jack so that you can safely and efficiently hike your car and engine up, to remove the motor mounts.



Motor Mounts- Finding the Right Mount For Your Car

As you begin looking for the best motor mount, you want to ensure that your mount meets or exceeds your vehicle manufacturer’s standards. Try to find a mount that is as close to the original equipment so that the new mount fits in the cavity and securely attaches to the engine block. Two styles of mounts are available for purchase: 1. The non-hydraulic mount- which is reasonably priced and useful enough for many engines. 2. The hydro mount- an effective choice-as they are able to isolate engine vibrations, and keep the shaking out of the passenger cabin.

In this day and age of online shopping, you can obtain the correct motor mount with your VIN number, or by offering your site of choice, the information they request. For any mount that you buy, be sure to keep all sales receipts, just in case you have to return it to the retailer. Additionally, if you ever run into any issue or have a question, just get a motor mount replacement from your trusted mechanic. You may have to pay more, but at least the job has been taken care of by a trusted professional.
